Smart DN25 Motorized Ball Valve with IoT Connectivity for Remote Monitoring and Control in Water Treatment and HVAC Systems

Ask Lasest Price
Brand Name :	GRAT
Model Number :	EK-20
Certification :	IP66,CCC, ISO, CE,CNAS,SIL
Price :	USD $150.00/ Piece
Payment Terms :	LC, T/T, D/P, PayPal, Western Union
Supply Ability :	1000PCS/Week
Delivery Time :	7 working days

Add to Cart

Product Details
Company Profile

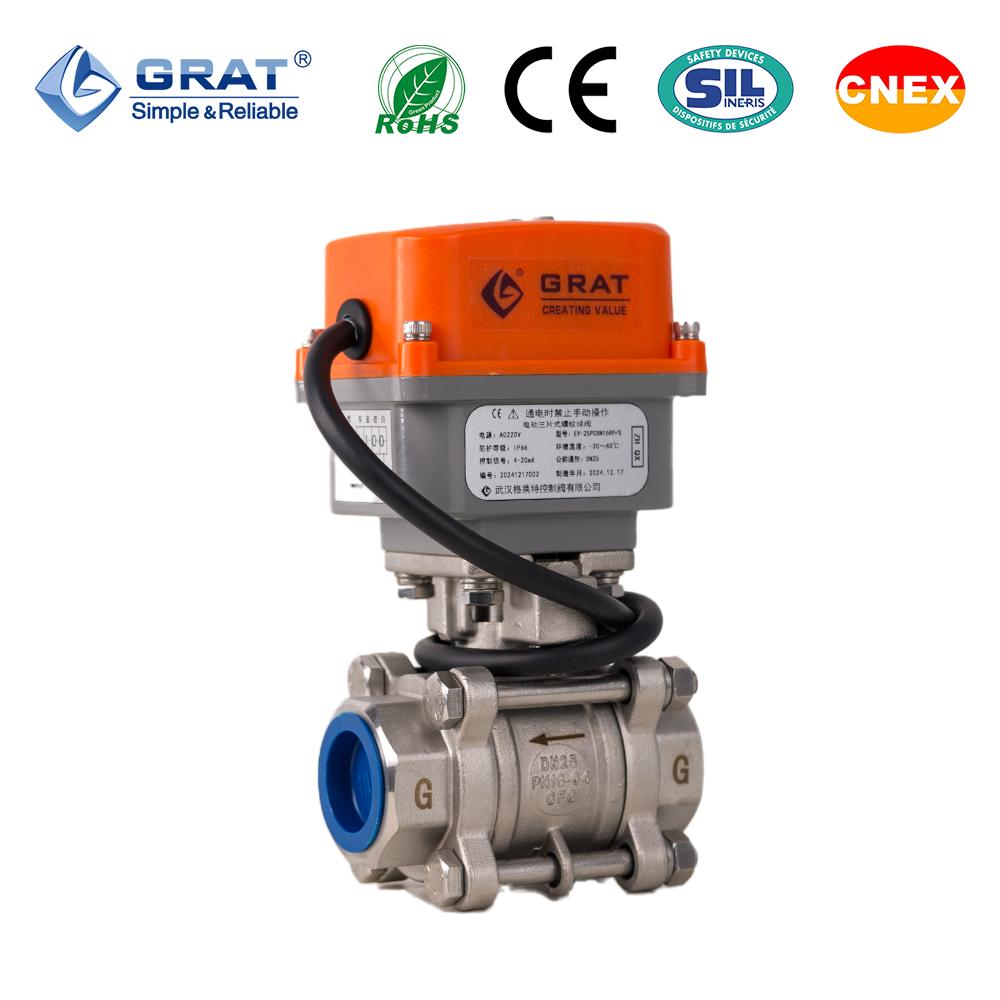

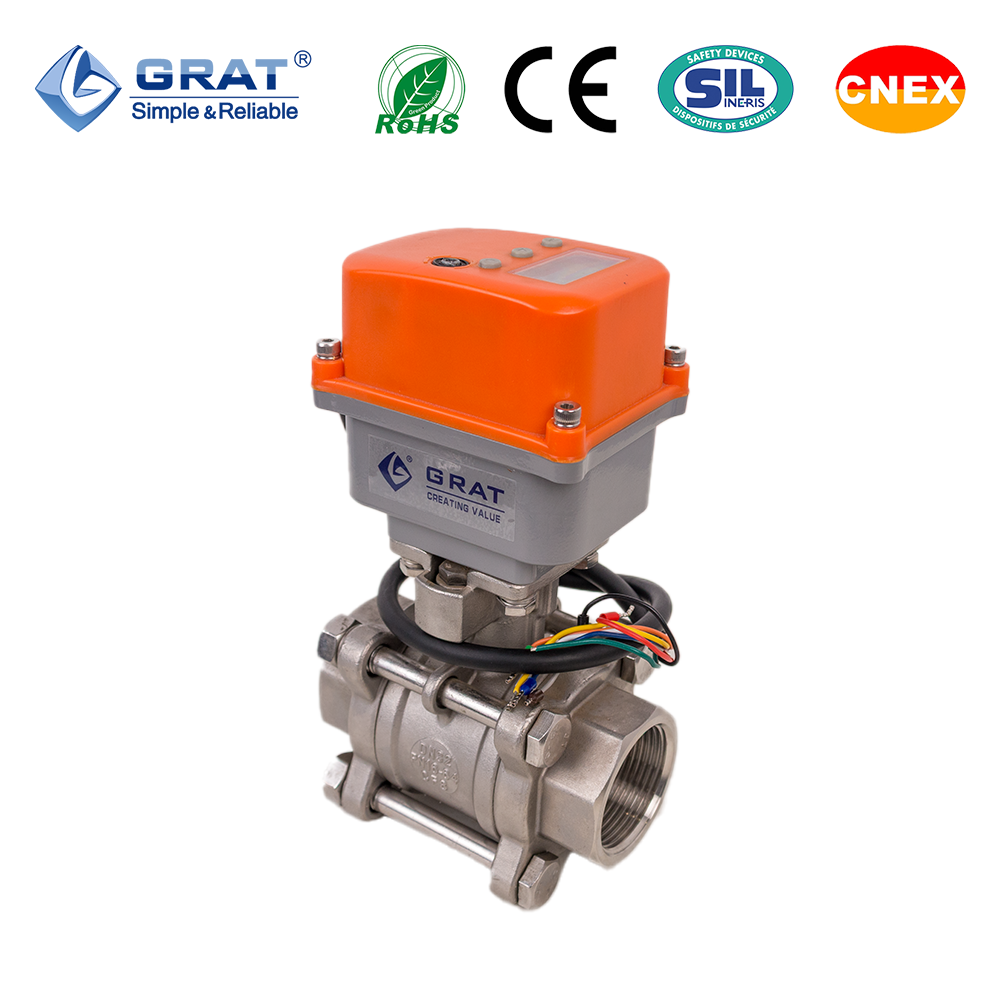

Smart DN25 Motorized Ball Valve with IoT Connectivity for Remote Monitoring and Control in Water Treatment and HVAC Systems

DN25 IoT Threaded Ball Valve

Product Description

Engineered for high-pressure differentials and clog-prone environments, the electric threaded ball valve lock ensures rapid switching and reliable pipeline media shut-off. With superior operational performance and exceptional cost-efficiency, it significantly outperforms solenoid valve counterparts in demanding industrial applications.

Features

Low power consumption and high efficiency: It only requires 10W of power, saving energy costs while maintaining efficient and stable operation.
Smooth speed regulation: Adopting PWM stepless speed regulation ensures stable actuator operation and more precise control.
High-performance motor: The built-in brushless motor with overload protection is stable, reliable, and has a long service life.
Real-time parameter display: The OLED displays status and parameter information in Chinese or English, providing real-time feedback and fault alarm information.
Precise control: Adjustable range from 30% to 100% with 0.5% control accuracy, meeting diverse control requirements.
Multiple feedback methods: Supports 4-20mA/0-10V/1-5V feedback methods for accurate control.

Basic Parameters

Nominal Bore (DN)	DN15～DN40
Operating Voltage	AC220V, DC24V
Medium Temperature	-15℃～60℃
Nominal Pressure	PN1.0～1.6MPa
Flow Characteristic	Quick opening

Physical Specifications

Connection Type	Union, Flange
Valve Body Materials	UPVC, CPCV, PVC
Valve Core Materials	UPVC, CPCV, PVC
Ball Valve Seal	PTFE, PPL, etc.
Packing Material	Graphite, PTFE
Actuator Seal	Viton (FKM)
Actuator Material	Cast aluminum alloy

Suitable Media

Neutral gases
Neutral liquids

Standards Compliance

Design & Manufacturing	GB12237-2007, API 6D
Product Inspection & Testing	API 598

Circuit Wiring Diagram

DC 24V

AC 220V

Packing & Shipping

Packing: Inner with bubble wrap, outer with cardboard box and wooden case.
Transportation: By sea, by air, by train.

If you have other requirements, please feel free to tell us.
